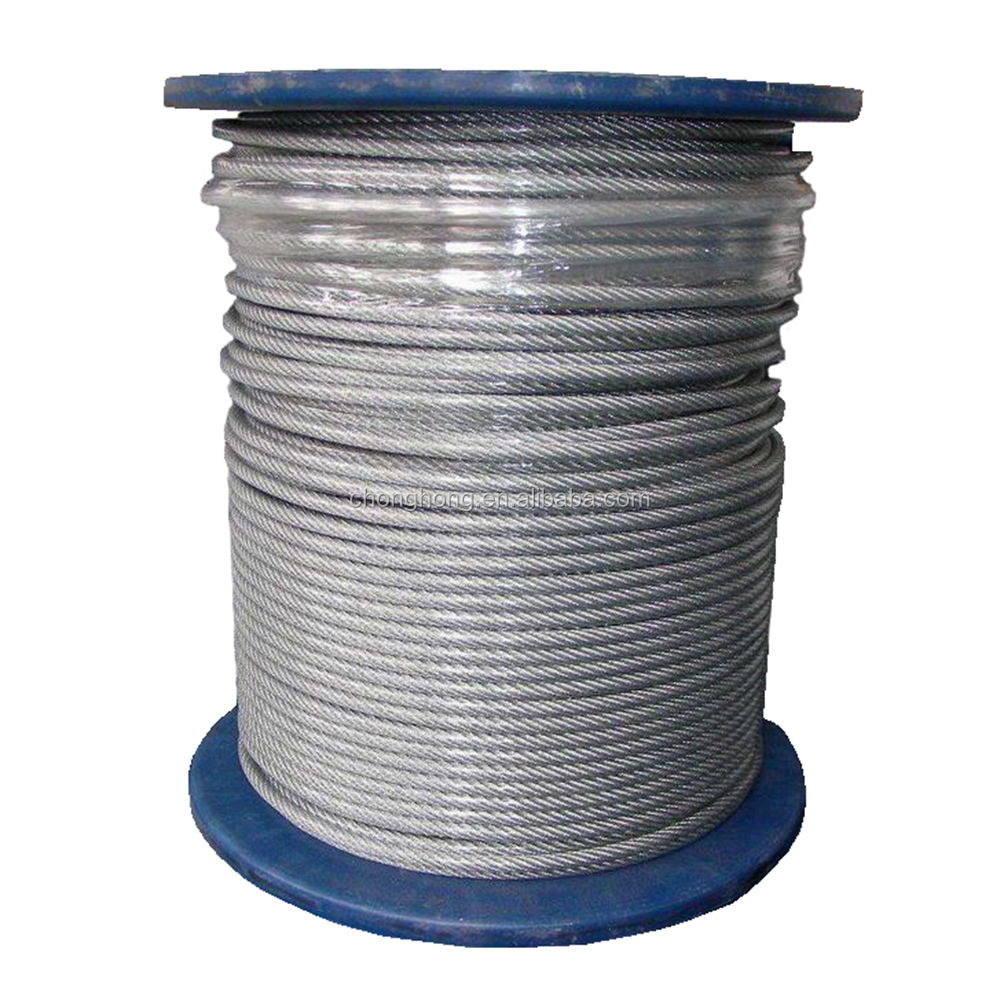

OEM Carbon Steel 6x24 7FC Ungalvanized and Galvanized Steel Wire Rope DIN3068 Bright Steel Wire Rope for Your Requirements

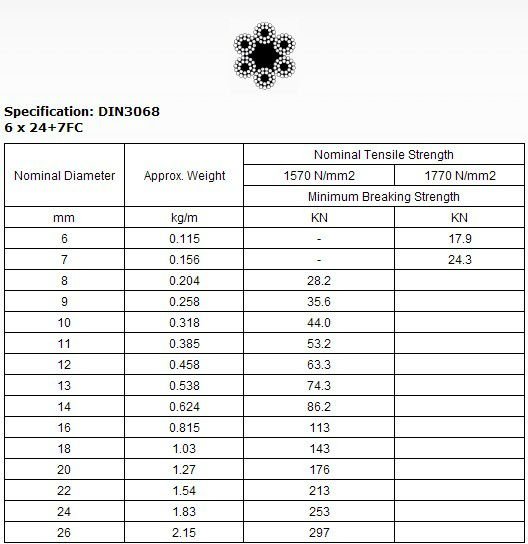

6x24+7FC Ungalvanized and Galvanized Steel Wire Rope DIN3068 Bright Steel Wire Rope

• Place of Origin:China

• Brand Name:CHONGHONG
• Product Name:Steel Wire Rope
• Standard:DIN3068
• Construction: 6x24+7FC

• Material: Carbon Steel

• Diameter: 6mm 26mm

• Approx. Weight(kg/m):0.115 to 2.15
• Types of core:Fiber core
• Length:500m/reel,1000m/reel or other
• Surface Treatment:Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.

• Nominal tensile strength : 1570N/mm², 1770N/mm²

• Application:Crane, lifting, hoist, marine, etc.
• Packaging:Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box or as per customer's requirements

Other Construction and Application

1. 6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, ing, lifting, towing etc.
2. 6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3. 6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×5Fi+FC,6×25Fi+IWR, 6×9Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, ing, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4. 18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload ,and tower crane.
5. 6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6. Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7. Galvanized Aircraft Cable 1×7, 1×19, 6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.

Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other

We can supply steel wire ropes of many specifications with galvanized and ungalvanized Surface to meet customers'needs.

Chonghong Industries Ltd. is a private enterprise,we are professional manufacturer of steel wire rope for 15years.
We mainly supply and manufacture galvanized aviation-use steel ropes with various structures and specifications, brake wires for cars, motorcycles and bicycles, stainless steel ropes, non rotating steel ropes, elevator wire ropes, and wire ropes for special uses. Our current annual output is 4,000 tons of galvanized steel ropes.
Backed by comprehensive production equipment, advanced testing instruments, and experienced staff, we guarantee reliable product quality. Today, our customers are in more than 60 countries in the European Union, North America, South and Central America, the Middle East and Southeast Asia.

In ordering steel wire rope, you are requested to give us complete information as specified below:

a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
